# Class ChartWidget

The Chart Widget component extending the Chart component to support widget style options. It can be used along with the DrilldownWidget component to support advanced data drilldown.

# Example

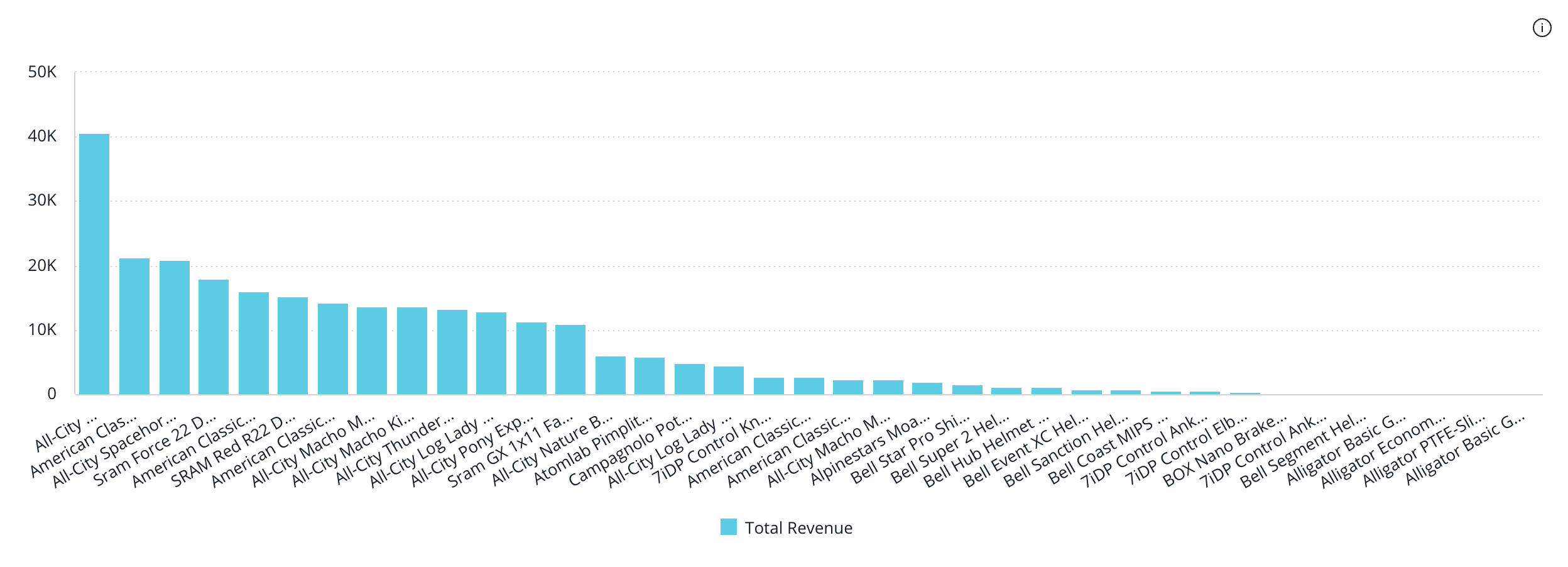

Here's how you can use the ChartWidget component in a Vue application:

<template>
   <DrilldownWidget :drilldownDimensions="drilldownDimensions" :initialDimension="dimProductName">
     <template
       #chart="{ drilldownFilters, drilldownDimension, onDataPointsSelected, onContextMenu }"
     >
       <ChartWidget
         chart-type="bar"
         v-bind:filters="drilldownFilters"
         :dataOptions="{
           ...chartProps.dataOptions,
           category: [drilldownDimension],
         }"
         :highlight-selection-disabled="true"
         :dataSet="chartProps.dataSet"
         :style="chartProps.styleOptions"
         :on-data-points-selected="(dataPoints:any,event:any) => {
         onDataPointsSelected(dataPoints);
         onContextMenu({ left: event.clientX, top: event.clientY });
       }"
         :on-data-point-click="(dataPoint:any,event:any) => {
         onDataPointsSelected([dataPoint]);
         onContextMenu({ left: event.clientX, top: event.clientY });
       }"
         :on-data-point-context-menu="(dataPoint:any,event:any) => {
         onDataPointsSelected([dataPoint]);
         onContextMenu({ left: event.clientX, top: event.clientY });
       }"
       />
     </template>
   </DrilldownWidget>
</template>

<script setup lang="ts">
import { ref } from 'vue';
import { measureFactory, filterFactory } from '@sisense/sdk-data';
import * as DM from '../assets/sample-retail-model';
import { ChartWidget } from '@sisense/sdk-ui-vue';

const dimProductName = DM.DimProducts.ProductName;
const measureTotalRevenue = measureFactory.sum(DM.Fact_Sale_orders.OrderRevenue, 'Total Revenue');
const chartWidgetProps = ref({
  // Configure your ChartWidgetProps here
});
</script>

# Param

ChartWidget properties

# Properties

# Data

# dataSource

readonly dataSource?: DataSource

Data source the query is run against - e.g. Sample ECommerce

If not specified, the query will use the defaultDataSource specified in the parent Sisense Context.

# filters

readonly filters?: FilterRelations | Filter[]

Filters that will slice query results

# highlights

readonly highlights?: Filter[]

Highlight filters that will highlight results that pass filter criteria

# Chart

# chartType

readonly chartType?: ChartType

Default chart type of each series

# dataOptions

readonly dataOptions?: ChartDataOptions

Configurations for how to interpret and present the data passed to the chart

# description

readonly description?: string

Description of the widget

# highlightSelectionDisabled

readonly highlightSelectionDisabled?: boolean

Boolean flag whether selecting data points triggers highlight filter of the selected data

Recommended to turn on when the Chart Widget component is enhanced with data drilldown by the Drilldown Widget component

If not specified, the default value is false

# styleOptions

readonly styleOptions?: ChartWidgetStyleOptions

Style options for both the chart and widget including the widget header

# title

readonly title?: string

Title of the widget

# Callbacks

# onBeforeRender

readonly onBeforeRender?: BeforeRenderHandler

A callback that allows you to customize the underlying chart element before it is rendered. Use the highchartsOptions object that is passed to the callback to change options values (opens new window) and then return the modified options object. The returned options are then used when rendering the chart.

This callback is not supported for Indicator Chart, Areamap Chart, Scattermap Chart, and Table.

For an example of how the onBeforeRender callback can be used, see the Compose SDK Charts Guide.

# onDataPointClick

readonly onDataPointClick?: AreamapDataPointEventHandler | BoxplotDataPointEventHandler | DataPointEventHandler | ScatterDataPointEventHandler | ScattermapDataPointEventHandler

Click handler callback for a data point

# onDataPointContextMenu

readonly onDataPointContextMenu?: BoxplotDataPointEventHandler | DataPointEventHandler | ScatterDataPointEventHandler

Context menu handler callback for a data point

# onDataPointsSelected

readonly onDataPointsSelected?: DataPointsEventHandler | ScatterDataPointsEventHandler

Handler callback for selection of multiple data points
